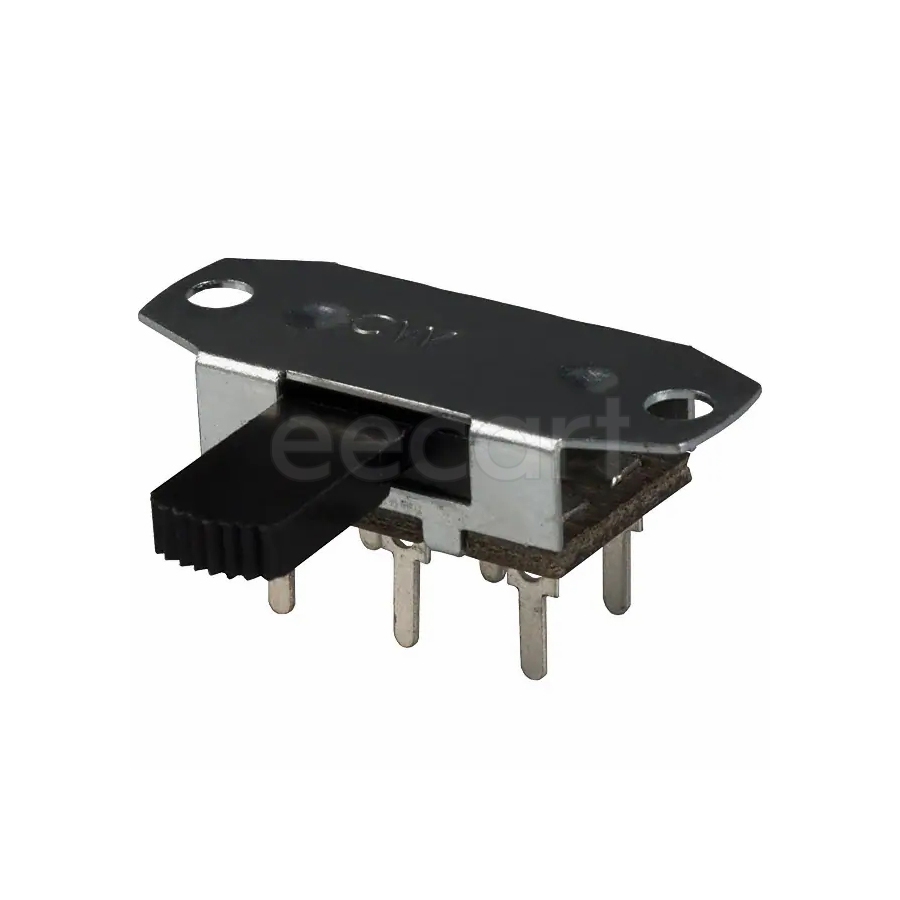

GG-350-3010
Manufacturer:
CW Industries
Mfr.Part #:
GG-350-3010
Datasheet:
Description:
Slide Switches Through Hole ON - ON DPDT Current Rating:3 A Extended
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 34.5 mm |
| Width | 7.87 mm |
| Termination | PC Pin |
| Max Operating Temperature | 104 °C |
| Min Operating Temperature | -10 °C |
| Voltage Rating (AC) | 125 V |
| Height | 14 mm |
| Circuit Type | DPDT |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 3 A |
| Orientation | Right Angle |
| Actuator Length | 13.08 mm |
| Throw Configuration | DPDT |
| Switch Function | ON - ON |
| Electrical Life | 6 kcycles |
| Switch Travel | 4.01 mm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 10 kcycles |
| Contact Current Rating | 3 A |
| Actuator Type | Extended |
| Termination Style | Solder Terminal |
